Ball Bearing Butt Hinges

Home Ball Bearing Butt Hinges

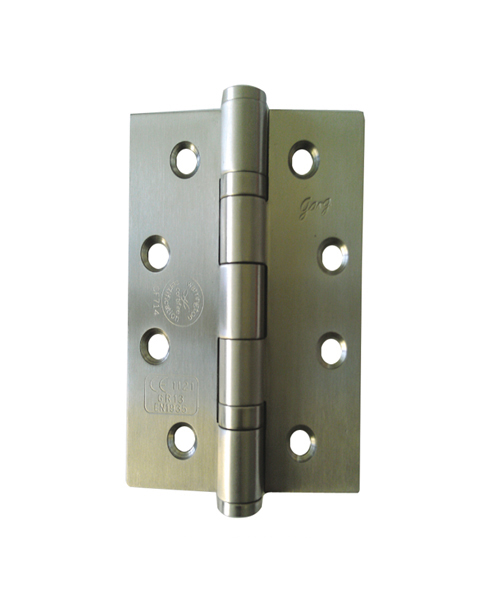

Ball Bearing Butt Hinges - IGH.433.SS

  • High Performance Hinge with Ball Bearing to carry heavy load. (Anti Corrosive).
  • Certified to BSEN 1935 Grade 13.
  • CE Marked.
  • CERTIFIRE CF 714.
  • Suitable for Fire Rated Doors.
  • Effective Door weight: 120 KG(Based on 3 Hinges per door).
  • Supplied with 8 Screws(Specify door type - Steel / Timber).
  • Size: 102mm x 76mm x 3mm.
  • Finish: Satin Stainless Steel - SSS 304 Grade.
  1. 433.BB.630
    Size: 102x76x3mm
    Finish: SSS
    443.BB.630
    Size: 102x102x3mm
    Finish: SSS
    45434.BB.630
    Size: 114x102x3.4mm
    Finish: SSS
  2. SOSS Concealed Hinge
    218.117.630, 218.117.630.FR
    Size : 117.48 x 28.58mm
    Finish: SSS
    Spring Hinge
    443.394.630.SA
    Size: 4 x 4 x 3mm
    Finish: SSS
    Double Action Spring Hinge
    543.103.630 - 125mm
    544.103.630 - 150mm
    Finish: SSS

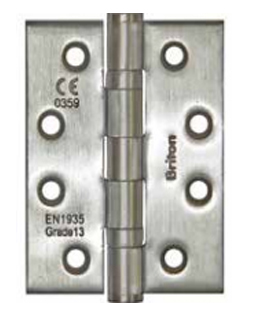

Briton Stainless Steel Hinges

  • Y4801.SS Ball Bearing Butt Hinges, Fire Rated
  • Size: 102 x 76 x 3mm
  • EN 1935 Grade 13 Standard
  • Classification Code: 476114013 CE
  • Suitable for Wooden / Steel doors
  • Tested for EN 1935:2002 Grade 13
  • CE Certified Available in Grade 304 and 316 Stainless Steel
  • CE Marked Maximum door weight : 120 kgs (3 Hinges per door)
