Briton Emergency Exit Panic Hardware

Products to EN 1125 “The most important thing you must consider when specifying panic exit hardware is who might be in the building in the event of an emergency.”

The following range consists of a vertical panic bolt, rim panic latch and a mortice nightlatch operator. Each product is operated by a horizontal push bar which, when pushed in a downward arc, withdraws either the bolts or the latch, releasing the door for immediate escape in the event of an emergency.

Where personnel have not been trained in the location and operation of the buildings exit devices or members of the public have access, exit devices conforming to EN 1125 must be specified and installed.

  • Adjustable top and bottom shoots.
  • Supplied with an easy clean socket.
  • Metal door variant with metal door strikes and machine screws, order 376M.

Briton 376 vertical panic bolt

  • Two point locking for extra security.
  • Anti-thrust device, prevents unauthorised retraction of the latch bolt.
  • Suitable for use on single and double door applications.
  • Self-handed - will suit both left and right handed doors.
  • Suitable for doors up to 2500mm high x 1300mm wide (extension rods are required to achieve maximum sizes).
  • Optional models available include pullman latches, alarmed and manually dogged (hold open) functions.

Briton 378 reversible rim panic latch

  • Suitable for use on single doors and the first opening leaf of double doors with rebated meeting stiles.
  • Supplied in left or right hand, but can be reversed on site.
  • Suitable for doors up to 1300mm wide.
  • Double door strike available for double rebated door applications.
  • Available with manual dogging (hold open).
  • Can be used with rim cylinder fitted to the outside of the door.
  • Supplied with an easy clean socket.
  • Metal door variant with metal door strikes and machine screws, order 378M.
  • Can be used with rim cylinder fitted to the outside of the door.
  • Supplied with an easy clean socket.
  • Metal door variant with metal door strikes and machine screws, order 378M.
  • Optional models include alarmed and manually dogged (hold open) functions.
  • Metal door variant with metal door strikes and machine screws, order 379M.N

Briton 379.N mortice panic nightlatch

  • Suitable for use on single and the first opening leaf of double door applications.
  • Supplied right hand, but can be reversed on site.
  • Suitable for doors up to 1300mm wide.
  • Supplied with dual profile cylinder mortice nightlatch, accepts both euro and oval profile cylinders (cylinder not supplied).
  • Anti-thrust device, prevents unauthorised retraction of the latch bolt.

Briton 1413 E/LE
External Locking - Lever Variant
A combination of market trends and the effect of The Disability Discrimination Act (DDA) has resulted in an increase in market demand for lever operation..
Briton 1438
Push Pad Rim Latch
Easy reversible Pad operated Rim Latch with security Grade 3 : 2,000 Newtons.
Briton 378.DDS
Double Door Strike

Panic and Emergency Door Hardware

Panic emergency door hardware is a vital and important product in the design and installation of fire and exit doors. Designed to allow the safe and speedy exit of personnel down an escape route in the event of a major emergency. It is designed to enable the simplest touch of the touch bar or crash bar to operate the door and thereby allow people to escape..

Panic emergency door hardware comes in various designs and mounting configurations and has the facility to allow authorized entry back into the building via an extensive range of entry trim. Surface, concealed, rim and latch models are available, but care should be taken when selecting the correct panic hardware, depending on the application required.

  • Dead latch bolt Stainless steel 16mm.
  • Reversible Trim.
  • Device Length: 32” for 36” size door
  • Non - handed

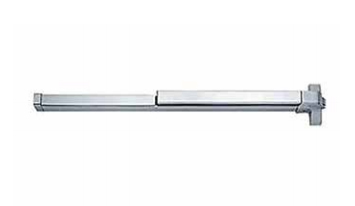

6000 SERIES TOUCH BAR, UL Listed 6050 / 6080F / 6090F

  • Heavy Duty Commercial Grade 1 Rim Exit Devices.
  • Conform to ANSI/ BHMA A156.3 Grade 1 UL and CUL listed.
  • Required Door thickness: 44mm.
  • Suitable for Door Width: 36”.
  • Latch Bolt Stainless steel 19mm throw.
  • Dead latch bolt Stainless steel 16mm.
  • Reversible Trim.
  • Device Length: 32” for 36” size door
  • Non - handed

6000 SERIES VERTICAL ROD EXIT DEVICE, UL Listed 6050V / 6080V / 6090V

  • Heavy Duty Commercial Grade 1 Rim Exit Devices.
  • Conform to ANSI/ BHMA A156.3 Grade 1 UL and CUL listed.
  • UL Listed for 3 hours fire rated exit devices.
  • Required Door thickness: 44mm.
  • Suitable for Door Width: 36”.
  • Reversible Trim .
  • Non-handed.
  • Device Length: 834mm.
  • Top Rod 1100mm, Bottom rod 960mm.
  • Vertical rod: 13mm round tubing.

External Trim

LHL550 OUTSIDE TRIM
Size: 95.25 x 120 mm
ESC550PF OUTSIDE TRIM with Cylinder
Size: 63.5 x 232 mm
