Lock Case

Home Lock Case

  • BRITON 5400 Series Lockcase

    Briton 5410 Cylinder Deadlock
    • Application: The deadbolt can be thrown and withdrawn from one side or from both as required depending on the cylinder selected.
    • Conforms to: EN 12209.
    • Classification: 2H810F3BC00.
    Briton 5420 Cylinder Sashlock
    • Application: The lock can be operated by lever handles to withdraw the latchbolt. The deadbolt can be thrown and withdrawn from one or both sides as required depending on the cylinder selected. The cylinder to latch function will operate both deadbolt and latch.
    • Conforms to: EN 12209.
    • Classification: 2H810F3BC20.
    Briton 5430 Bathroom lock
    • Application: From both sides the lock can be operated by lever handle to withdraw the latchbolt. The 10mm throw deadbolt is operated from inside by a single turn of a thumbturn. The outside of the door can be fitted with an indicator and emergency release and operates in conjunction with the thumbturn via an 8mm spindle.
    • Conforms to: EN 12209.
    • Classification: 2H810F-B020.
    Briton 5440 Latch
    • Application: From both sides the lock can be operated by lever handle to withdraw the latchbolt at all times.
    • Conforms to: EN 12209.
    • Classification: 2H810F-B020.

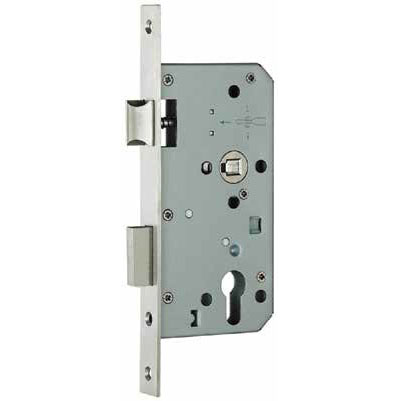

  • Mortice Lockcase

    Mortice Lockcase
    • Heavy duty spring mechanism.
    • Double Throw dead bolt extension.
    • 55 / 60mm backset, 72mm centers.
    • Easy reversible latch bolt without tampering lock mechanism.
    • Cylinder can withdraw both Latch and Dead bolt - offers safety combined with security.
    • Dimension according to DIN 18251.
    • Suitable for Fire Rated Doors.
    • CE Marked.
    • Conforms to BS EN 12209.

    ZDL.7255.SS

    Mortice Lockcase, CE Marked,

    CERTIFIRE, Fire Rated

    Size: 55mm BS Finish: SSS


    771.5572 Z

    IGL.55.PZW

    Mortice Lockcase, CE Marked

    Size: 55mm BS Finish: SSS


    771.850.045

    IGL.45.PZW

    Mortice Lockcase, 85mm C/C

    Size: 45mm BS Finish: SSS

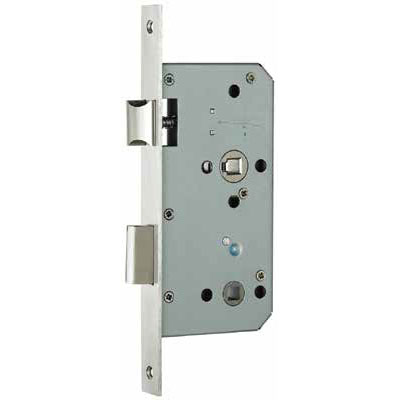

    Mortice Bathroom Lockcase(772.5578WC, IGL.55.WC)
    • 55mm Backset, 78mm Centres.
    • SS 304 forend and strike plate.
    • SS 304 latch bolt and Dead Bolt.
    • SS 304 spindle follower.
    • BS EN 12209 Standard.
    • Suitable for bathroom or toilet doors.
    • Lever handle retracts latchbolt. Thumb turn operates.
    Mortice Dead Lockcase(773.8508.630 (5572 ZD))
    • Euro profile cylinder operation.
    • Backset 55 mm.
    • Forend 22x138 mm.
    • Two turn bolt extension.
    • Cylinder can withdraw Dead bolt - offers safety combined with security.
    • Successfully included in fire test to BS 476: Part 22 for use on 90 minutes fire door.
    Mortice Latch Lockcase(774.8518.630 (5572 ZL))
    • Balanced spring mechanism, suitable for both sprung and unsprung lever for long life Operation..
    • Easy reversible latch.
    • Backset 55 mm.
    • Forend 22x138 mm.
    • Successfully included in fire test to BS 476: Part 22 for use on 90 minutes fire door.

  • Mortice Hook Lock / Latch

    Mortice Hook Lock (775.852.630)
    • Cylinder operated mortice lock for sliding doors.
    • 50 mm Backset.
    • Solid brass hook.
    • Forend 22 x 156 mm.
    Mortice Hook Lock (WC DOOR)(776.853.630)
    • Privacy function mortice lock for sliding doors.
    • 50 mm Backset.
    • 8 mm square spindle holes.
    • Solid brass hook.
    • Forend 22 x 156 mm.
    Roller Latch (777.201.630)
    • Size: 54x90.
    • Finish: SSS.
    Budget Lock (778.855.630)
    • Size: 36mm BS.
    • Finish: SSS.

  • Euro Profile High Security Cylinders

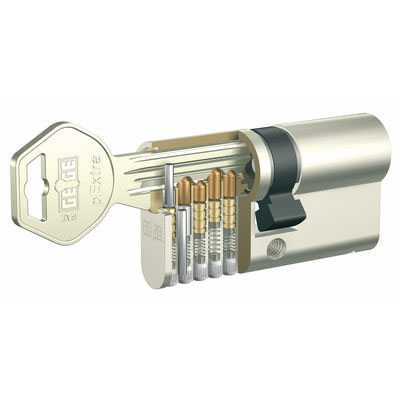

    Euro Profile High Security Cylinders

    EURO PROTEC is the high-end version of locking systems and meets exacting standards regarding Security, versatility and convenience. No locking system is ever the same as any other. EURO PROTEC locking cylinders are always the right choice.

    • Extruded solid brass body. Plug and mushroom anti-pick pins.
    • Top pins made of Solid Brass.
    • Bottom pins of Anti Drill Stainless Steel.
    • Two Line bottom pins.
    • Springs made from special treated bronze for lasting tension.
    • Available with 5 pins and 6 pins.
    • Self lubricating cam from sintered steel.
    • All Cylinders supplied with 3 keys.
    • Option of master keying systems.
    • Complies with DIN 18254 Standard.
    Euro Profile Double Cylinder
    • 860.DP.60.SN 60mm
    • 870.DP.70.SN 70mm
    • 880.DP.80.SN 80mm
    • 890.DP.90.SN 90mm

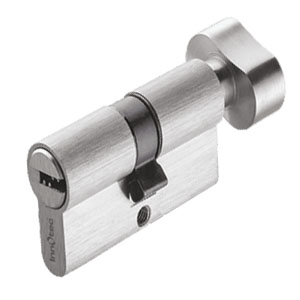

    Euro Profile Knob Cylinder
    • 860.KP.60.SN 60mm
    • 870.KP.70.SN 70mm
    • 880.KP.80.SN 80mm
    • 890.KP.90.SN 90mm
    Euro Profile Privacy Cylinder
    • 860.WC.60.SN 60mm
    • 870.WC.70.SN 70mm
    • 880.WC.80.SN 80mm
    • 890.WC.90.SN 90mm

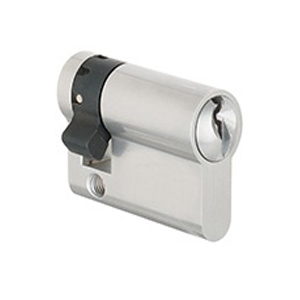

    Euro Profile Single Cylinder
    ( 845.SC.45.SN 45mm)

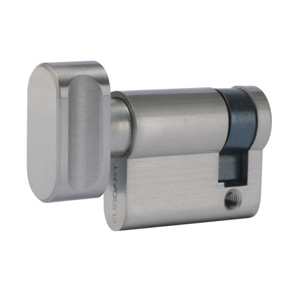

    Single Cylinder Thumb Turn
    ( 845.SK.45.SN 45mm )
    Grand Master Key System

  • Certificates
